$0.00 Sale Save

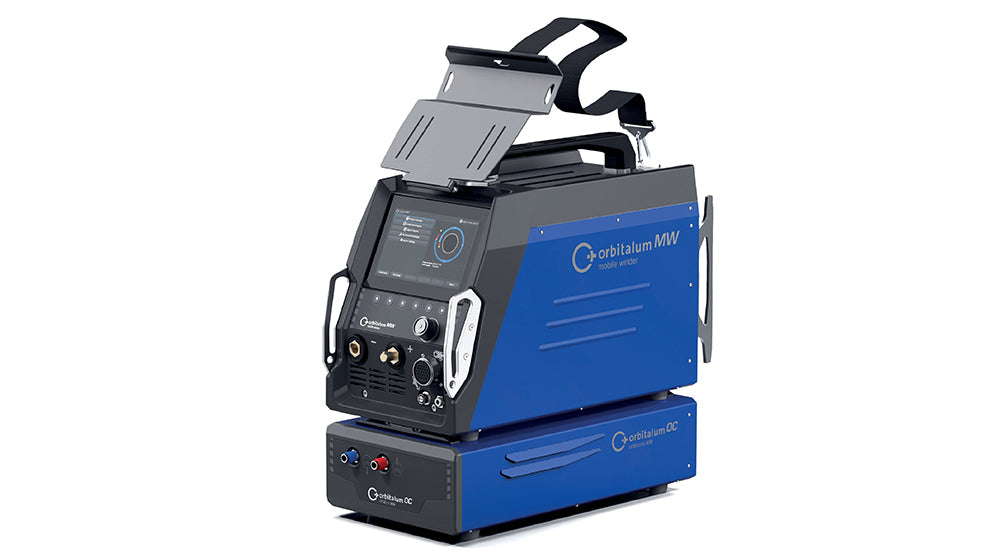

Orbital welding just got a whole lot easier! Introducing the Orbitalum Mobile Welder OC Plus.

Produce consistently high-quality welds regardless of your location. With the Mobile Welder OC Plus, you can master any challenge in modern pipeline construction with ease.

The Mobile Welder OC Plus is the first portable orbital welding power source designed specifically for use on production and construction sites. It brings the usual high and consistent quality of orbital welding to even the most remote locations.

Only 0 left in stock

  • Lightweight and robust design equipped with state-of-the-art information and communication technology, building on the strengths of the Orbitalum 180SW.
  • Minimal setup and training requirements leads to maximum ease of use.
  • The same software as the 180SW allows for immediate changeover of trained personnel and seamless program exchange between machines.
  • Supplied with the Orbicool MW cooling unit.
  • Integrated Manual Welding Mode with the possibility to operate a hand torch.
The performance attributes of Orbitalum Tools 'Precision. Power. Simplicity.' reflect the high precision, powerful and robust drive and tool designs as well as the ease and safe use of the products produced in Germany. Orbitalum products excel with high efficiency, ease of operation and a safe and mobile setup conforming to the latest safety standards.

PRECISION

The Orbitalum Mobile Welder OC Plus produces a highly precise weld that is efficient, safe and repeatable over and over. With extra reporting capability your weld quality and precision will be taken to a new level.

POWER

Durable, robust and powerful, the Orbitalum Mobile Welder OC Plus enables a continuous and effective pipe weld.

SIMPLICITY

As complexity and demand are continuously increasing in our surroundings, Orbitalum Tools is focusing on systems and machines that are ergonomic and user friendly. Specially made for the end user in mind. Intuitive operator guidance and a simplified service diagnostic enable a fast practice and an efficient completion.

Technical SpecificationsInclusions
Control range5 - 180AOrbicool MW
Welding currentDCConnection line (MW-OCMW)
Duty cucle60% - 180A
100% - 140A
Cooling liquid (OCL-30)
3.5l/118.3 fl oz
Supply voltage
(Supply voltage > 160V
1~ 110-230V 50/60HzShoulder strap (MW)
Weight20.9kg*Power cable (DE)
Dimensions273 x 546 x 513mm
(10.8 x 21.5 x 20.2in)
Power cable (DE)
IP standardIP23SHose connection set
Screen Size7"Operating instructions
Internal PrinterThermal
USB Ports2
Cooling liquid sensor✔ **

* Without cooling liquid
** In external cooling unit
