Orbimax Standard Tee Pulling Kit
Orbimax Standard Tee Pulling Kit
Standard Tee Pulling Kit Acme
Orbimax Standard Tee Pulling Kit
Tee Pulling Kit Acme - SFI Orbimax
Tee Pulling Kit Acme - SFI Orbimax
Tee Pulling Kit Acme - SFI Orbimax
Tee Pulling Kit Acme - SFI Orbimax
Orbimax Standard Tee Pulling Kit
Standard Tee Pulling Kit Acme
Tee Pulling Kit Acme - SFI Orbimax
$929.00

Orbimax Standard Tee Pulling Kit

Orbimax

// FREE SHIPPING ON THIS ITEM //

The Orbimax Standard Tee Pulling Kit also known as a Branch Forming Kit is a manual system for pulling tees and forming outlets in many different materials such as Stainless Steel and Copper.

The Standard Tee Pulling Kit is designed to let you work smarter by creating even clean outlets inexpensively, efficiently and with ease.

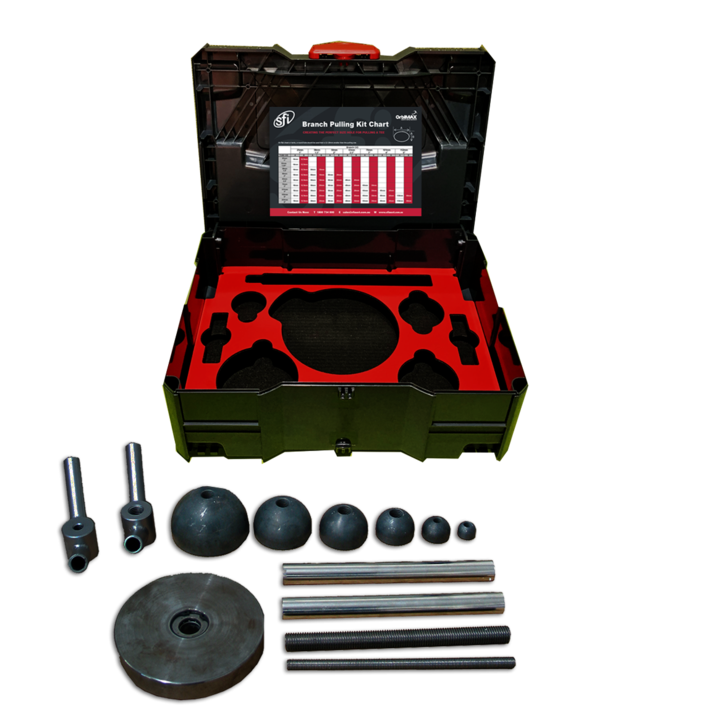

The Standard Tee Pulling Standard Kit includes:

  • Six different sizes of case-hardened branch forming balls (1, 1.5, 2, 2.5, 3 and 4 inch).
  • Includes two different size threads, one of which is a case-hardened Acme thread which is capable of handling large loads with less wear.
  • Two different size handles with stainless steel handle extension bars for easier use and better leverage.
  • Thrust plate designed to transfer load and force.
  • Branch forming chart to calculate the correct size hole.
  • German made systainer case for safe and secure storage of your kit
+

Only left in stock

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
N
Nimal Jayaratne
Glad to see an Aussie product like this.

It was heartening to see an Aussie product like this. As a piping engineer and as the creator of the JBE Professional Piping Engineering Course, I can see material like this adding value to a budding piping engineer. Have you done a study to relate your product to ASME B 31.3 extruded tees? Especially the stress intensification factors?

WHAT IS A TEE PULLING KIT

The Orbimax Standard Tee Pulling Kit also known as a Branch Forming Kit is a manual system for pulling tees and forming outlets in many different materials such as Stainless Steel and Copper.

The Standard Tee Pulling Kit is designed to let you work smarter by creating even clean outlets inexpensively, efficiently and with ease.

    OPTIONAL ACCESSORIES

    • Stainless Steel saddles designed to guide your branches as you form them.
    • 5” and 6” branch forming balls also available separately for larger applications
    FAST & RELIABLE

    The Orbimax Standard Tee Pulling Kit helps you create a repeatable, effective process for forming branches with high-quality precision ensuring you get maximum output for minimum effort.

    Almost failsafe, the simplistic technique guarantees that even those with little to no experience can create a high-quality branch easily and quickly.

    INEXPENSIVE

    The Orbimax Standard Tee Pulling Kit will pay for itself before you know it.

    Made from case hardened steel for longevity and designed and manufactured in Australia you can be assured of quality.

    The kit will speed up the process of forming a tee and is easy to use, allowing inexperienced operators to form a branch in minutes.

    • Made In Australia
    • Case Hardened Stainless Steel
    CLEAN FORMING

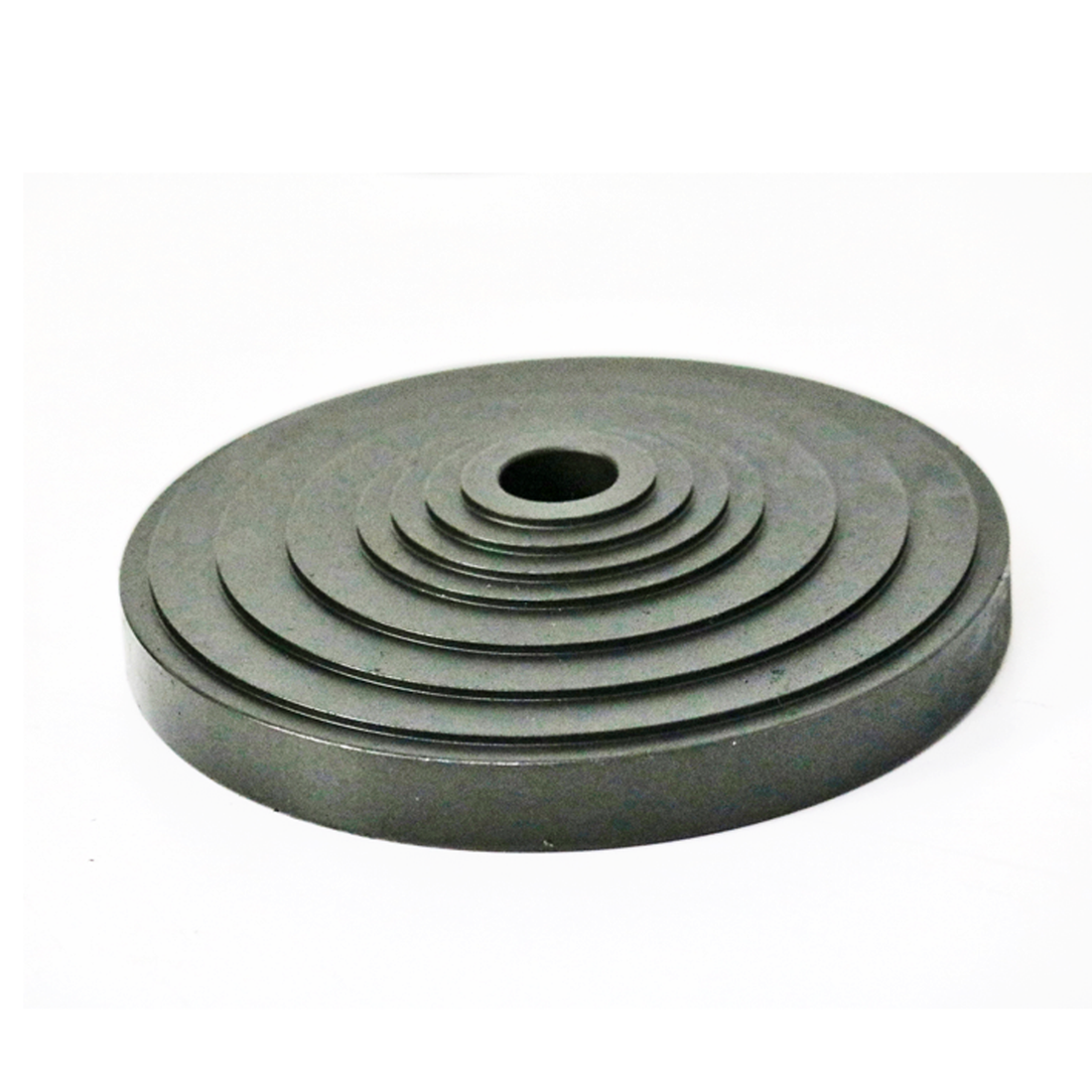

    Designed to achieve a clean form the Orbimax Standard Tee Pulling Kit includes a custom designed case hardened steel thrust plate which distributes the forces applied when forming a tee.

    When combined with the optional accessory saddles the branch is cleanly formed with neat edges ready for welding.

    SADDLES (OPTIONAL ACCESSORY)

    • Saddles are designed to help create the perfect tee form
    • As the forming ball is pulled through the saddle holds the shape and improves the overall finish.

    UNDER SIZE VS STANDARD

    • Standard pulling balls have an extra length of case hardened steel (approximately 10 to 12mm long) that provides a flat surface after the ball reaches the correct size, ensuring a quality finish to the end result.

      An Under Size Tee Pulling Ball removes this flat area, allowing, for example; a 2" forming ball to fit inside a 2"pipe.

    EFFICIENT DESIGN

    Because forming a new branch only takes a matter of minutes and creates a fully functional and high-quality branch, you can spend more of your valuable time on other parts of your job that can’t be automated.
