Introducing

Orbimax TX Series Industrial Grade TIG Welders

Designed for the welder, by the welder.

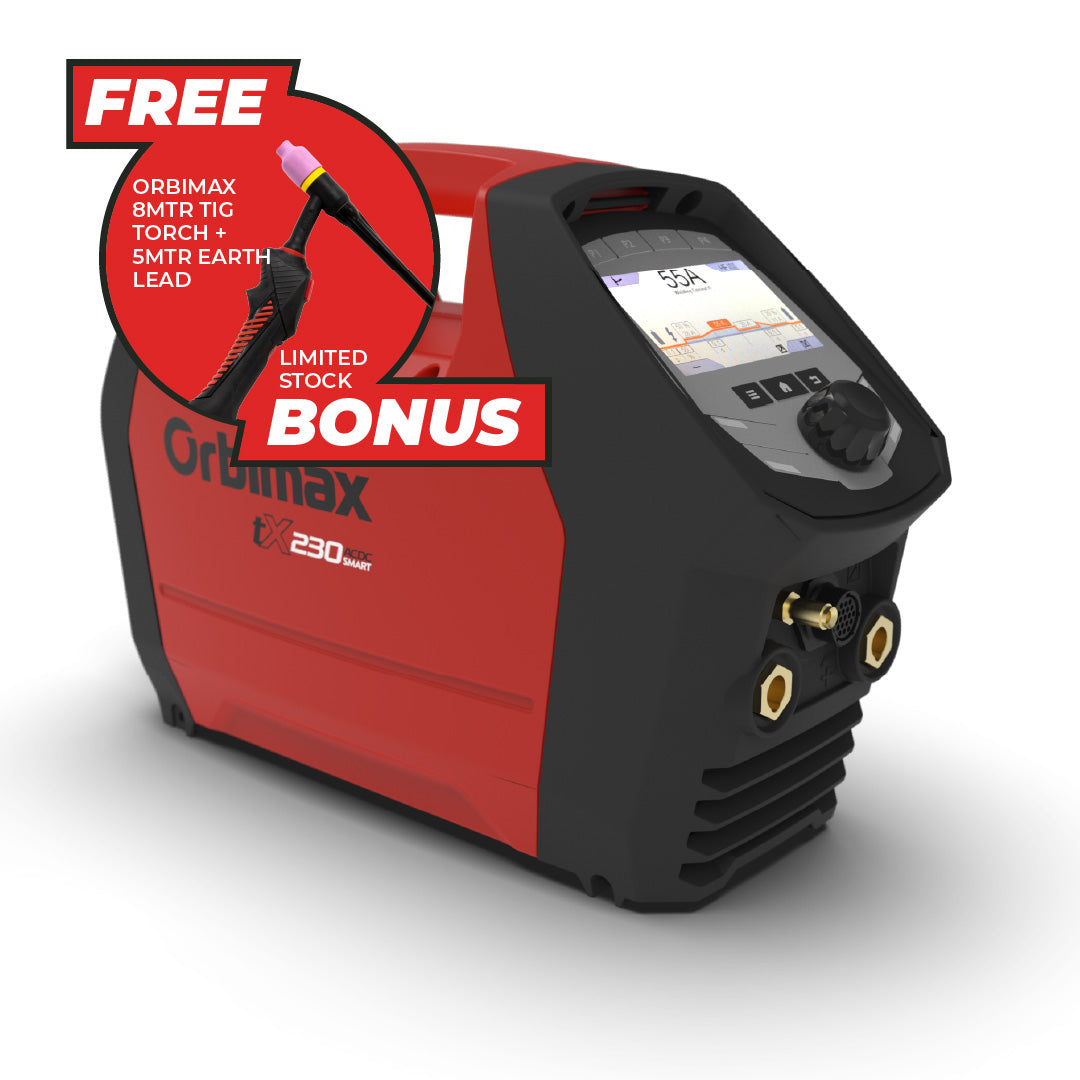

Orbimax TX-230 SMART TIG Welder
Orbimax TX-230 SMART TIG Welder
Orbimax TX-230 SMART TIG Welder
Orbimax TX-230 SMART TIG Welder
Orbimax TX-230 SMART TIG Welder
Orbimax TX-230 SMART TIG Welder
Orbimax TX-230 SMART TIG Welder
Orbimax TX-230 SMART TIG Welder

Orbimax TX-230 SMART TIG Welder

$4,490.00 Ex GST Sale Save

Put yourself in control and create the perfect weld. The TX Series lets you choose a pre-set or override settings unique to your welding task. Choose from pre-programmed weld settings or create your own, save the function for future jobs and easily load your saved programs.

Smart

Available in DC and AC/DC configurations our top of the range Smart industrial grade TIG welders sets you up for the future of welding. Fully featured with Auto Smart Programming and intuitive, yet simple interface. The Orbimax smart range is designed for professional use - designed by welders, for welders.

The Orbimax TX-230 SMART TIG Welder features:

  • Setting range: 4-230A
  • Duty cycle:100% @ 160A or 40% @230A
  • Mains connection: 230V - 50/60Hz
  • Protection type: IP 23 S
  • Weight: 7.9kg
  • Processes: TIG-DC & AC/DC + MMA
Includes Qty
TX-230Smart TIG Welder 1
Orbimax 17F Industrial TIG Torch 8m 1
5m Earth Lead Large Dinse 1

DOWNLOAD

Download


TX Series Brochure & Specifications


Power Source DC

ORBIMAX

Weld Smarter

With maximum efficiency

SMART + SIMPLE

Orbimax Industrial TIG Welders are Smart + Simple, designed with the future of welding in mind, but with simplicity at the core.


German made and refined for the Australian welding industry, this welding range features industry-leading specifications and reliability, giving you the confidence to get on with the job ahead, knowing your welder is up to the task.

ACHIEVE THE BEST WELDS, BE MORE EFFICIENT AND EXCEL WITH A WELDER DESIGNED BY WELDERS, FOR WELDERS.

The Orbimax TX Series TIG Welders are a single phase industrial-grade welder designed for professional welders and workshops where quality and precision are paramount.


Available in DC and AC/DC configuration, the TX Series of welders are lightweight, durable and simple to operate. At only 7.1KG they are highly portable, ready to handle your every welding need.


Orbimax industrial-grade TX Series welders have a 230 V (15 Amp) single phase input and are available in 180A or 230A, letting you focus solely on the welding tasks ahead.

FROM SIMPLE WELDING TASKS TO ADVANCED FULL-FEATURE APPLICATIONS, THE ORBIMAX TX SERIES ARE DESIGNED FOR INDUSTRY-LEADING WELDING APPLICATIONS WHERE FULL CUSTOMISATION AND EASE-OF-USE ARE CRITICAL.

Orbimax welding solutions are more than a great welder, we’re committed to building the future of welding by connecting the Smart + Simple for real-world welding applications.

EDGE

Our intermediate TIG welders give you the edge. Smart + Simple Edge series welders are equipped with everything the professional welder requires. Optimised for increased functionality, mobility and key features to perfect your weld.

SMART
Our top of the range Smart industrial grade TIG welders set you up for the future of welding. Fully featured with Auto Smart Programming and an intuitive, yet simple interface, the Orbimax smart range is designed for professional use - designed by welders, for welders.

Key Features

ARC IGNITION

HIGH FREQUENCY (HF) START

Avoid tungsten contamination and achieve a more hygeinic weld. HF Start uses touchless ignition which created by high-voltage pulses between your work surface and the torch making for faster, smoother welds from ignition.

LIFT ARC

Simple contact ignition made between your work surface and the TIG electrode.

PULSE SETTINGS

PULSE

Conventional pulsing offers pulse times greater than 0.1 seconds.

HIGH SPEED PULSE

Weld faster while achieving the perfect weld with high speed pulse. Excellent, easy to weld application on thin wall materials.

HYPER PULSE

Hyper Pulse creates a narrow weld pool which solidifies faster allowing for materials 0.1 mm and above to be welded fast and efficiently. The Hyper Pulse feature also reduces noise, adding to the long-term safety of staff.

SPOT WELDING

COLD TACKING

Save time tacking and avoid excessive heat input and discolouration with Smart Spot tacking. Cold tacking minimises heat by creating a quick weld pool.

MATERIALS

MATERIAL THICKNESS

Weld a broad range of materials from 0.1mm.

SMART PROGRAMMING

SMART PROGRAM

Utilise existing weld presets or create your own programs with the ability to store 99 presets, saving you time and allowing you to switch between welds quickly.
*Smart models only.

SMART DUAL WAVE

For the welding of alumnium and brass: The Orbimax Smart Dual Wave feature alternates between AC and DC while removing the oxide layer which calms the weld pool, resulting in reduced pore formation and significant quality improvements. (AC/DC machines only)

SMART AUTO ASSIST

Weld Smarter with practical welding tips and user-friendly interface allowing you to select the base material, shape of the weld and material.

DUTY & DURABILITY

DUTY CYCLE

Best in class industry-leading duty cycle of 100% @ 140A (TX 182) and 100% @ 160A (TX 230)

DURABILITY

Built with the industry in-mind. The lightweight yet sturdy design is built rugged for the job ahead.

FUME REDUCTION

Reduce the amount of fumes produced by creating less heat and utilising smarter weld presets.

BETTER WELD PUDDLE VISIBILITY

See more with better weld puddle visability with Pulse, High Speed Pulse and Hyper Pulse settings.

VOLTAGE REDUCTION DEVICE

Use less power while
welding faster with smart
voltage reduction.

SMART + SIMPLE

Orbimax redefine welding with access to the right tools for every job, including automated and semi-automated equipment all designed to help you #WeldSmarter.

FAST SHIPPING

We process orders and ship with a fast turnaround time so you can improve your efficiency.

ONGOING SUPPORT

All Orbimax products are backed by our first-class support service and warranty. We provide support and advice where and when you need us. Call us anytime at 1800 672 000.

Trusted Brand

Our equipment is built by welders, for welders. Made with care and craftsmanship that only comes industry experience.

Unparalleled Quality

We use the highest quality materials for our tools and equipment. Built tough to withstand harsh work environments.

Get in touch about the Orbimax TX-230 SMART TIG Welder
